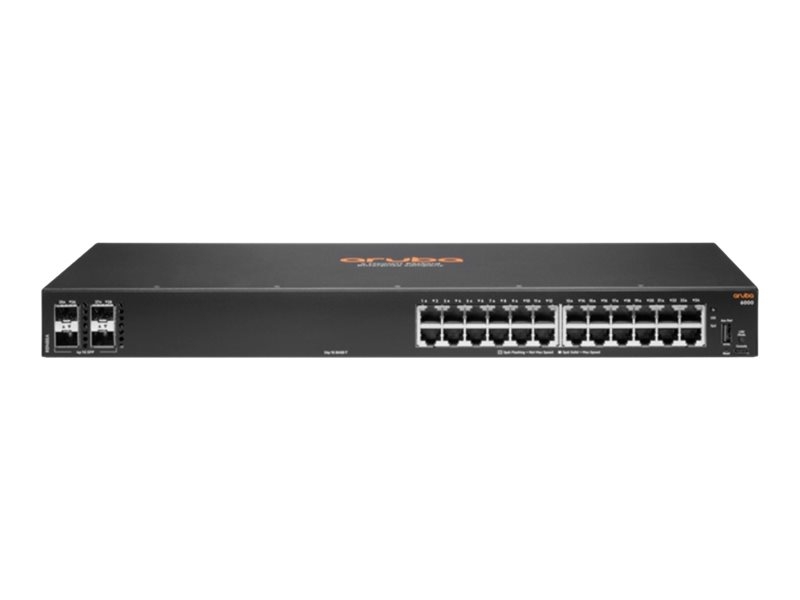

HPE Aruba 6000 24G 4SFP Switch
Koda: R8N88A
Device Type: Switch, 24 ports, L3 Managed,
Enclosure Type: Side to side airflow rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24x 10/100/1000, 4x Gigabit SFP,
Performance: Packet buffer size: 12.38 MB
Processor: 1x ARM A9: 1.016 GHz
RAM: 4 GB DDR3 SDRAM
Flash Memory: 16 GB
Vmesniki:
24x 10/100/1000 Base-T RJ-45
4x Gigabit LAN SFP
1x USB Type A
1x USB-C console
Napajalnik: Internal power supply, AC 100 -127 V / 200-240 V (50/60 Hz)
Power Consumption med delovanjem: 33 Watt
Dimenzije (WxDxH): 44.2 cm x 20.12 cm x 4.39 cm
masa: 2.62 kg
Throughput: 41.6 Mpps
Switching capacity: 56 Gbps
Latency (1 Gbps): 1.5 µs
Capacity: Switched virtual interfaces (SVIs): 16
ARP entries: 1024
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
IGMP groups: 512
MLD groups: 512
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256
MAC Address Table Size: 8192 entries
Jumbo Frame Support: 9198 bytes
Proizvajalčeva garancija: 5 let Bring-In garancija
=====================================
Routing Protocol: IGMPv2, IGMP, IGMPv3
Remote Management Protocol: SNMP 1, RMON 1,
RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c,
HTTP, CLI, ICMP, DHCP, RADIUS
Encryption Algorithm: SSL
Authentication Method: Secure Shell (SSH), RADIUS,
TACACS+, Secure Shell v.2 (SSH2)
Features: Flow control, BOOTP support, ARP support,
VLAN support, DiffServ support, IPv6 support, SNTP support,
sFlow, Multiple Spanning Tree Protocol (MSTP) support,
Trivial File Transfer Protocol (TFTP) support,
Access Control List (ACL) support, MLD snooping,
Trusted Platform Module (TPM), LACP support,
LLDP support, DHCP client, Management Information Base (MIB),
Neighbor Discovery Protocol (NDP), SNMP support,
Internet Control Message Protocol (ICMP), DNS client,
LLDP-MED, User Datagram Protocol (UDP),
Rapid Reconfiguration of Spanning Tree (RSTP),
IPv6 addressing, UDP support, Any Source Multicast (ASM),
Compliant Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q,
IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP),
IEEE 802.1w, IEEE 802.1s, IEEE 802.3az
Compliant Standards: CISPR 24, EN 61000-3-2, IEC 61000-3-2,
IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2,
IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3,
UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1,
CAN/CSA C22.2 No. 60950, CNS 13438, IEC 60825-1 Class 1,
EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 A,
ICES-003 issue 6 Class A, UL 62368-1 Second Edition,
CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A,
CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A,
IEC 62368-1 Second Edition
