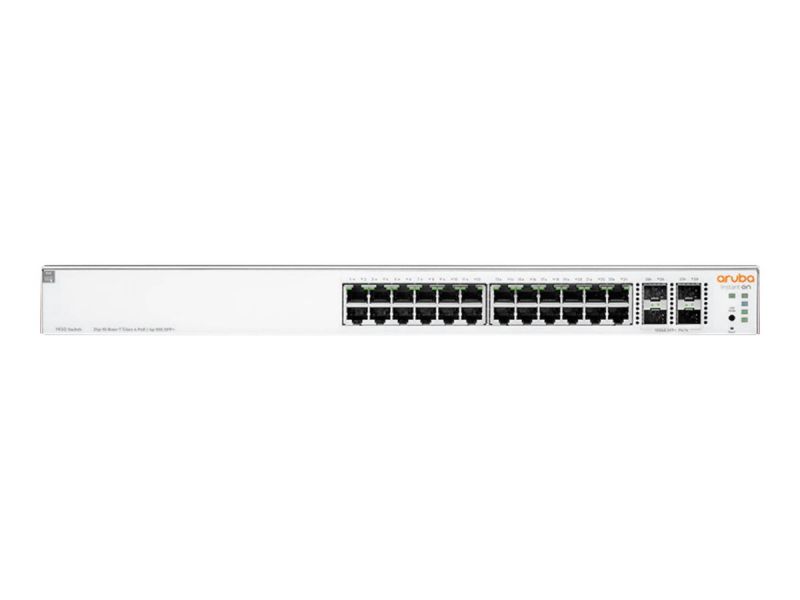

HPE Aruba IOn 1930 24G 4SFP+ 195W Sw
Koda: JL683B
Gigabit Ethernet Switch - 28 ports - L3 - Managed, Rack-mountable 1U,
Porti: 24 x 10/100/1000 (PoE) + 4x 1 Gigabit / 10 Gigabit SFP+,
Power Over Ethernet (PoE): PoE, PoE Budget: 195 W,
Performance: Switching capacity: 128 Gbps,
Throughput: 95.23 Mpps,
Latency (1 Gbps): 2.4 µs, Latency (10 Gbps): 1.3 µs,
Capacity: Link aggregation ports: 8, IPv4 routes (static): 32,
VLANs supported: 256,
Access Control Entries (ACEs) per ACL: 480
Packet buffer size: 1.5 MB
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, RMON, SNMP 3,
SNMP 2c, HTTP, HTTPS, TFTP, RADIUS,
Encryption Algorithm: SSL, Authentication Method: RADIUS,
Processor: 1 x ARM: 800 MHz, RAM: 512 MB SDRAM,
Flash Memory: 256 MB Status Indicators: Port status, power, PoE,
Expansion / Connectivity
Interfaces: 24 x 10/100/1000 Base-T RJ-45 PoE - 195 W,
4x 1/10Gbit LAN SFP+
Interni napajalnik: AC 100-127/200-240 V (50/60 Hz), 234 Watt
dimenzije (W x D x H): 44.25 cm x 26.47 cm x 4.39 cmm masa: 3.49 kg,
Proizvajalčeva garancija: 5 let (Bring-In garancija)
======================
MTBF: 76 let.
Features: Flow control, DHCP support, ARP support,
VLAN support, auto-uplink (auto MDI/MDI-X),
IGMP snooping, IPv6 support, half duplex mode,
full duplex mode, Spanning Tree Protocol (STP) support,
Multiple Spanning Tree Protocol (MSTP) support,
Access Control List (ACL) support, Quality of Service (QoS),
Trusted Platform Module (TPM), LLDP support,
Link Aggregation Control Protocol (LACP),
Energy Efficient Ethernet, Class of Service (CoS),
BPDU Filter, PoE Class 4,
Compliant Standards: IEEE 802.3, IEEE 802.3u,
IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p,
IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP),
IEEE 802.1w, IEEE 802.1x, IEEE 802.1s,
IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az,
IEEE 802.2af,
Compliant Standards: VCCI, CISPR 24, EN 61000-3-2,
IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11,
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4,
IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8,
EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1,
CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438,
EN 55024:2010, FCC CFR47 Part 15 A,
ICES-003 issue 6 Class A, UL 62368-1 Second Edition,
CISPR 32 Class A, EN 62368-1:2014,
EN 55032:2015+AC:2016, CISPR 35, SSL,
IEC 62368-1: 2014 Second Edition, EN 55035:2017,
========================
