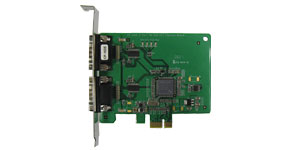

CP-102E
2-port RS-232 PCI Express x1 kartica (2x DB9 na kartici)
* PCI Express x1 compliant
* 921.6 Kbps maximum baudrate for super fast data transmission
* 128-byte FIFO and on-chip H/W, S/W flow control
* Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/x64, ....),
Linux 2.4, Linux 2.6 (x86/x64) QNX 6,
Windows XP Embedded,
SCO OpenServer 5/6, UnixWare 7
* 15 KV ESD protection on the board
SPECIFIKACIJA:
Hardware
Comm. Controller: 16C550C compatible
Bus: PCI Express x1
Connector: CP-102E: DB9 male CP-102EL: DB25 female
Serial Interface
Number of Ports: 2
Serial Standards: RS-232
Max. No. of Boards per PC: 4
Serial Line Protection
ESD Protection: 15 KV on the board
Performance
Baudrate: 50 bps to 921.6 Kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Driver Support
Operating Systems: Windows (2000, XP/2003/Vista/2008 x86/x64),
Linux 2.4, Linux 2.6 (x86/x64),
QNX 6,
Windows XP Embedded,
SCO OpenServer 5/6, UnixWare 7
MODEL ZA NAROČILO:
CP-102E:
2-port RS-232 PCI Express x1 serial board
