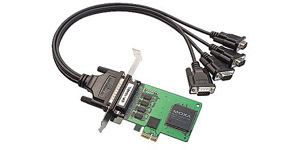

CP-104EL-A
4-portna RS-232 PCI Express x 1serijska kartica
* PCI Express x1 compliant
* 921.6 Kbps maximum baudrate for super fast data transmission
* 128-byte FIFO and on-chip H/W, S/W flow control
* Low profile form factor fits small-sized PCs
* Drivers provided for:
Windows 7 x86/x64, XP/2003/Vista/2008, x86/x64, 2000, DOS,
Linux 2.4/2.6,QNX 6, SCO Open Server 5/6, UnixWare 7
* Easy maintenance with on-board LEDs and management software
* 15 KV ESD protection on the board
SPECIFIKACIJA:
Hardware:
Comm. Controller: 16C550C compatible
Bus: PCI Express x1
Connector: DB44 female
Serial Interface
Number of Ports: 4
Serial Standards: RS-232
Max. No. of Boards per PC: 4
Serial Line Protection
ESD Protection: 15 KV on the board
Performance:
Baudrate: 50 bps to 921.6 Kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Driver Support
Operating Systems: Windows 2000, Windows XP/2003/Vista/2008/7
x86/x64, DOS, Linux 2.4, 2.6 x86/x64, QNX 6, SCO Open Server 5/6,
UnixWare 7
Note: Please refer to Moxa’s website for the latest driver support information.
MODELI ZA NAROČILO:
CP-104EL-A-DB9M:
4-port RS-232 PCI low profile Express x1 serial board (includes DB9 male cable)
CP-104EL-A-DB25M:
4-port RS-232 low profile PCI Express x1 serial board (includes DB25 male cable)
