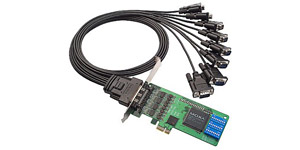

CP-118EL-A
8-port RS-232/422/485 PCI Express serial board
* PCI Express x1 compliant
* 921.6 Kbps maximum baudrate for super fast data transmission
* 128-byte FIFO and on-chip H/W, S/W flow control
* Choose from a wide range of connection cables and boxes
* Low profile form factor fits small-sized PCs
* Drivers provided for
Windows 7 x86/x64, XP/2003/Vista/2008, x86/x64, 2000, DOS,
Linux 2.4/2.6,QNX 6, SCO Open Server 5/6, UnixWare 7
* 15 KV ESD protection on the board
SPECIFIKACIJA:
Hardware
Comm. Controller: 16C550C compatible
Bus: PCI Express x1
Connector: VHDCI 68
Serial Interface
Number of Ports: 8
Serial Standards: RS-232/422/485
Max. No. of Boards per PC: 4
Serial Line Protection
ESD Protection: 15 KV on the board
Performance
Baudrate: 50 bps to 921.6 Kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND
Driver Support
Operating Systems:
Windows 2000, Windows XP/2003/Vista/2008/Windows 7 x86/x64, DOS,
Linux 2.4, 2.6 x86/x64, QNX 6, SCO Open Server 5/6, UnixWare 7
Note: Please refer to Moxa’s website for the latest driver support information.
MODELI ZA NAROČILO:
CP-118EL-A:
8-port RS-232/422/485 low profile PCI Express x1 serial board
