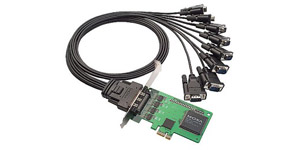

CP-168EL-A
8-port RS-232 PCI Express x1serial board
* PCI Express x1 compliant
* 921.6 Kbps maximum baudrate for super fast data transmission
* 128-byte FIFO and on-chip H/W, S/W flow control
* Choose from a wide range of connection cables and boxes
* Low profile form factor fits small-sized PCs
* Drivers provided for
Windows 7 x86/x64, XP/2003/Vista/2008 x86/x64, 2000, DOS,
Linux 2.4/2.6,QNX 6, SCO Open Server 5/6, UnixWare 7
* 15 KV ESD protection on the board
SPECIFIKACIJA:
Hardware
Comm. Controller: 16C550C compatible
Bus: PCI Express x1
Connector: VHDCI 68
Serial Interface
Number of Ports: 8
Serial Standards: RS-232
Max. No. of Boards per PC: 4
Serial Line Protection
ESD Protection: 15 KV on the board
Performance
Baudrate: 50 bps to 921.6 Kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Driver Support
Operating Sytems:
Windows 2000, Windows XP/2003/Vista/2008/Windows 7 x86/x64, DOS,
Linux 2.4, 2.6 x86/x64, QNX 6, SCO Open Server 5/6,
UnixWare 7
Note: Please refer to Moxa’s website for the latest driver support information.
MODELI ZA NAROČILO:
CP-168EL-A:
8-port RS-232 low profile PCI Express x1 serial board
Opcija - potreben kabel s konektorji:
CBL-M68M9x8-100 (kabel 1m iz kartice na 8x DB9M kabel)
CBL-M68M25x8-100 (kabel 1m iz kartice na 8x DB25M kabel)
OPT8-M9+ (kabel 1,5m 8x DB9M)
OPT8B+ (kabel 1,5m 8x DB25M)
OPT8A+ (kabel 1,5m 8x DB25F)
OPT8S+ (kabel 1,5m 8x DB25F, 25KV ESD protection)
Za več informacij o izdelku prosimo izpolnite spodnji obrazec in kontaktirali vas bomo v najkrajšem možnem času.
