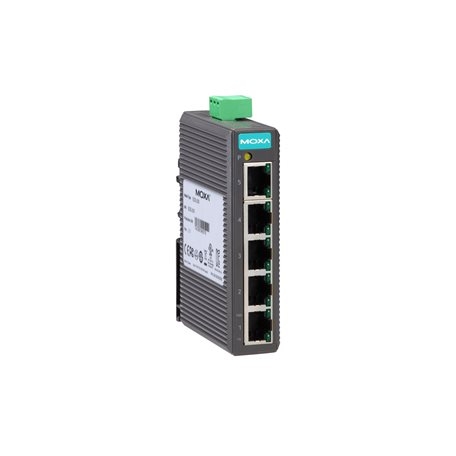

MOXA EDS-205 Series
5-port entry-level unmanaged Ethernet switches
Features and Benefits
10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u/802.3x support
Broadcast storm protection
DIN-rail mounting ability
-10 to 60°C operating temperature range
Ethernet Interface:
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
Switch Properties
Processing Type
Store and Forward
MAC Table Size: 1 K
Packet Buffer Size: 512 kbits
Power Parameters: Input Voltage 24 VDC
Input Current: 0.11 A @ 24 VDC
Operating Voltage: 12 to 48 VDC
Connection: 1 removable 3-contact terminal block(s)
Overload Current Protection: 1.1 A @ 24 VDC
Reverse Polarity Protection: Supported
Physical Characteristics
Housing: Plastic
IP Rating: IP30
Dimensions: 24.9 x 100 x 86.5 mm,
masa: 135 g (0.30 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: EN 60950-1, UL 508
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-31
MTBF Time: 3,915,945 hrs
Standards: Telcordia (Bellcore), GB
