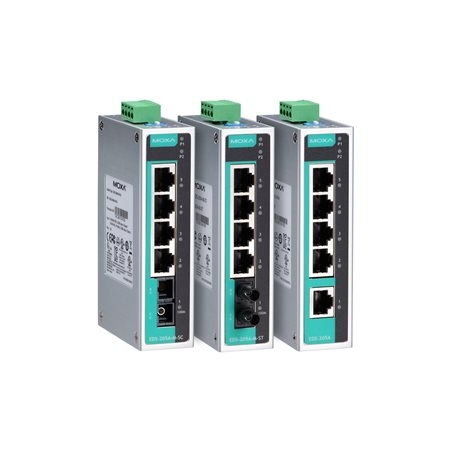

EDS-205A Series
5-port compaktni unmanaged industrijski Ethernet switchi
Modeli:
MOXA EDS-205A,
MOXA EDS-205A-T,
MOXA EDS-205A-M-SC,
MOXA EDS-205A-M-ST,
MOXA EDS-205A-S-SC
Features and Benefits
10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
Redundant dual 12/24/48 VDC power inputs
IP30 aluminum housing
Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/LR/ABS/NK)
-40 to 75°C wide operating temperature range (-T models)
Ethernet Interface: 10/100BaseT(X) Ports (RJ45 connector)
EDS-205A/205A-T: 5x
EDS-205A-M-SC/M-ST/S-SC Series: 4x
All models support:
Auto negotiation speed
Full/half duplex mode
Auto MDI/MDI-X connection
EDS-205A-M-SC Series:
1x 100BaseFX Ports (multi-mode SC connector)
EDS-205A-M-ST Series:
1x 100BaseFX Ports (multi-mode ST connector)
EDS-205A-S-SC Series:
1x 100BaseFX Ports (single-mode SC connector)
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Switch Properties:
MAC Table Size: 1 K,
Packet Buffer Size: 384 kbits,
Processing TypeStore and . Forward,
Power Parameters: Connection: 1 removable 4-contact terminal block(s),
Input Current:
MOXA EDS-205A/ MOXA EDS-205A-T: 0.09 A @ 24 VDC
MOXA EDS-205A-M-SC, MOXA EDS-205A-M-ST: 0.1 A @ 24 VDC
MOXA EDS-205A-S-SC Series: 0.1 A @ 24 VDC
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
DIP Switch Configuration
Ethernet Interface
Broadcast storm protection
Physical Characteristics:
Housing: Aluminum,
IP Rating: IP30,
Dimensions: 30 x 115 x 70 mm,
masa: 175 g,
Installation : DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits:
Operating Temperature:_
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous Locations: IECEx, ATEX, Class I Division 2
Maritime: ABS, LR, NK, DNV
Railway: EN 50121-4
Safety: UL 508
Shock: IEC 60068-2-27
Traffic Control: NEMA TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-31
MTBF Time: 3,040,784 hrs
Standards: Telcordia (Bellcore), GB
Garancija: po pogojih MOXA za Slovenijo
