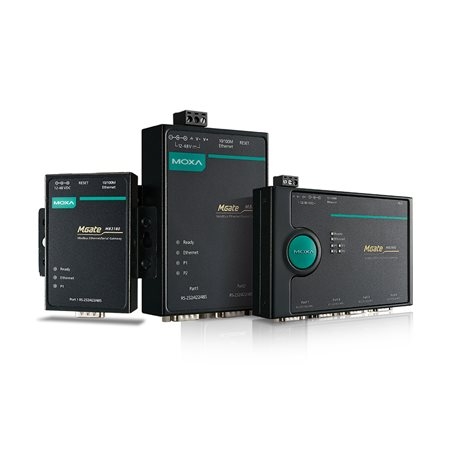

MOXA MGate MB3180/MB3280/MB3480 serije
1, 2, and 4-port standard serial-to-Ethernet Modbus gateways
Features and Benefits
Supports Auto Device Routing for easy configuration
Supports route by TCP port or IP address for flexible deployment
Converts between Modbus TCP and Modbus RTU/ASCII protocols
1 Ethernet port and 1, 2, or 4 RS-232/422/485 ports
16 simultaneous TCP masters with up to 32 simultaneous requests per master
Easy hardware setup and configuration
Ethernet Interface:
10/100BaseT(X) Ports (RJ45 connector)
Auto MDI/MDI-X connection
Magnetic Isolation Protectio:m1.5 kV (built-in)
Ethernet Software Features:
Industrial Protocols
Modbus TCP Client (Master)
Modbus TCP Server (Slave)
Configuration Options:
All models: Web Console (HTTP), Device Search Utility (DSU), MGate Manager, MCC Tool, Telnet Console
MGate MB3280/MB3480 only: Web Console (HTTPS)
Management:
All models: ARP, DHCP Client, DNS, HTTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP
MGate MB3280/MB3240 only: HTTPS, SMTP, SNMP Trap, NTP Client
MIB: RFC1213, RFC1317,
Time Management: NTP Client (MGate MB3180 Excluded)
Security Functions: Authentication, Local database
Encryption: HTTPS, AES-128, AES-256, SHA-256
Security Protocols: SNMPv3, HTTPS (TLS 1.2) (except MGate MB3180),
Serial Interface (število portov):

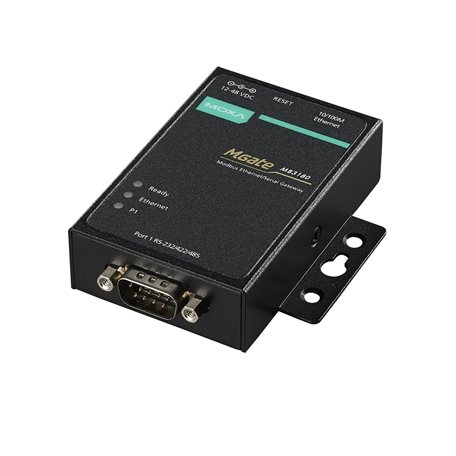

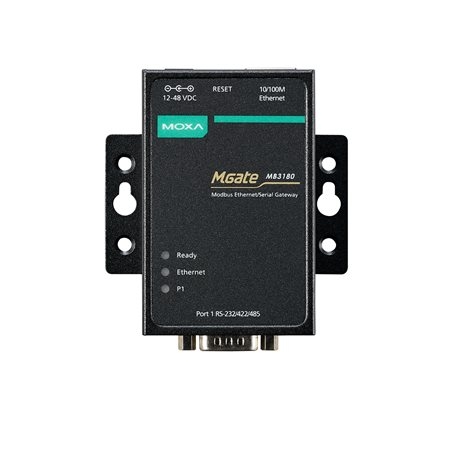

MOXA MGate MB3180: 1

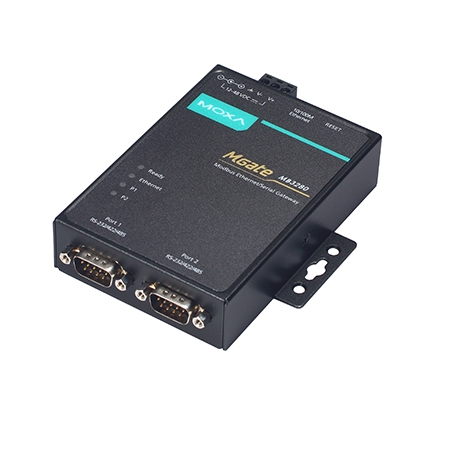

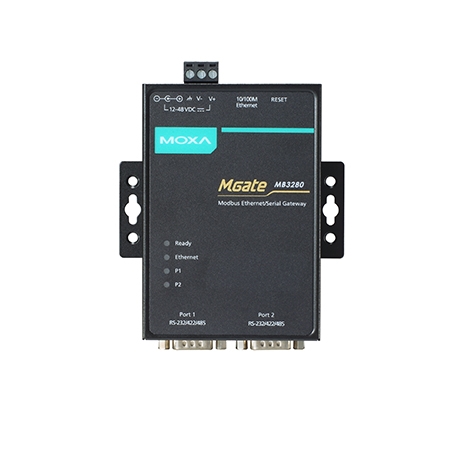

MOXA MGate MB3280: 2

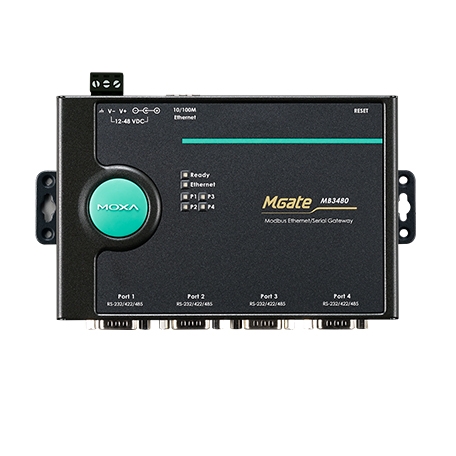

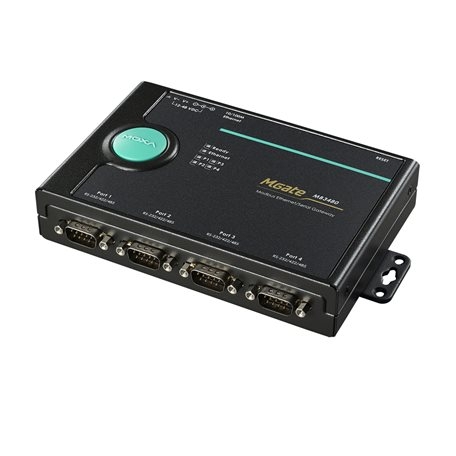

MOXA MGate MB3480: 4
Connector: DB9 male
Serial Standards: RS-232/422/485 (software selectable)
Baudrate: 50 bps to 921.6 kbps
Data Bits: 7, 8
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 2
Flow Control: DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS,
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: MGate MB3180: None; MGate MB3280/MB3480: 120 ohms,
Serial Signals:
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features:
Industrial Protocols
Modbus RTU/ASCII Master
Modbus RTU/ASCII Slave
Modbus (Transparent): Max. No. of Client Connections: 1,
Max. No. of Server Connections: 32,
Power Parameters (Input Voltage): 12 to 48 VDC,
Input Current:
MGate MB3180: 200 mA @ 12 VDC
MGate MB3280: 250 mA @ 12 VDC
MGate MB3480: 365 mA @ 12 VDC
Power Connector:
MGate MB3180: Power jack
MGate MB3280/MB3480: Power jack and terminal block
Ohišje: kovinsko,
IP Rating: IP30
Dimensions (with ears)
MGate MB3180: 22 x 75 x 80 mm,
MGate MB3280: 22 x 100 x 111 mm,
MGate MB3480: 35.5 x 102.7 x 181.3 mm,
Dimensions (without ears)
MGate MB3180: 22 x 52 x 80 mm,
MGate MB3280: 22 x 77 x 111 mm,
MGate MB3480: 35.5 x 102.7 x 157.2 mm,
masa:
MGate MB3180: 340 g,
MGate MB3280: 360 g,
MGate MB3480: 740 g,
Environmental Limits (Operating Temperature):
MGate MB3180: 0 to 55°C
MGate MB3280: 0 to 60°C
MGate MB3480: 0 to 55°C
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMI
CISPR 32, FCC Part 15B Class A
EMC: EN 55032/35
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV (MB3180/MB3280)
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 2 kV (MB3480)
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
IEC 61000-4-11
Safety (varnost ):
MB3180 Models: EN 62368-1 and UL 60950-1
MB3280/3480 Models: IEC/UL 62368-1
MTBF Time:
MGate MB3180: 2,762,384 ur
MGate MB3280: 749,455 ur
MGate MB3480: 1,213,993 ur
