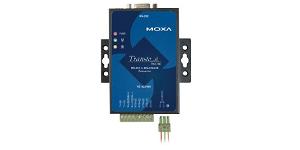

MOXA TC-100/100I konverter RS-232 na RS-422/485
• RS-232 stran:
Konektor DB9F
Signali RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422/485 stran:
Konektor Terminal Block
Signali (interface selected by DIP switch)
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
• Hitrost serijskega porta:
Baudrate 50 bps do 921.6 Kbps
ESD Protection 15 KV
Optical Isolation Protection 2 KV (TCC-100I)
• Ohišje iz aluminija
• Dimenzije: 67 x 100.4 x 22 mm
• Temperatura okolice
Delovna temperatura: -20 to 60°C
Tempratura skladiščenja: -20 to 85°C
• Power Requirements
Source of Input Power RS-232 port (TxD, RTS, DTR) or power input jack
Input Voltage 12 to 48 VDC
Power Consumption TCC-100 : 300 mA @ 12 V
TCC-100I: 400 mA @ 12 V
Voltage Reversal Protection Protects again V+/V- reversal
Over Current Protection Protects against two signals shorted together
Surge Protection Power EFT/Surge Protection 2 KV
